The Yash Membrane Filter Press is designed for high-efficiency solid-liquid separation. It utilizes expandable membrane plates to apply additional squeeze pressure to the filter cake after the initial feed cycle. This secondary squeezing drastically reduces residual moisture content, optimizes washing efficiency, and shortens the overall filtration cycle. TECHNICAL SPECIFICATIONS PLATE AND FRAME DETAILS Plate Sizes: 470 mm x 470 mm to 2000 mm x 2000 mm Plate Material: High-density Polypropylene Membrane Material: EPDM, Nitrile, or Thermoplastic Elastomer Cake Thickness: 15 mm to 50 mm Structure: Mild Steel with anti-corrosive epoxy painting or Stainless Steel cladding PRESSURE AND TEMPERATURE RATINGS Standard Feed Pressure: 7 to 10 Bar Membrane Squeeze Pressure: 12 to 16 Bar High Pressure Options: Up to 30 Bar squeeze pressure available Operating Temperature: Up to 90 degrees Celsius HYDRAULIC AND CONTROL SYSTEM Closure System: Fully Automatic Hydraulic Hydraulic Operating Pressure: 200 to 250 Bar Control Panel: PLC-based fully automated panel with HMI touchscreen CAPACITY Filtration Area: 1 square meter to over 1000 square meters Cake Holding Capacity: 10 liters to 15, 000 liters per batch
This is your website preview.
Currently it only shows your basic business info. Start adding relevant business details such as description, images and products or services to gain your customers attention by using Boost 360 android app / iOS App / web portal.

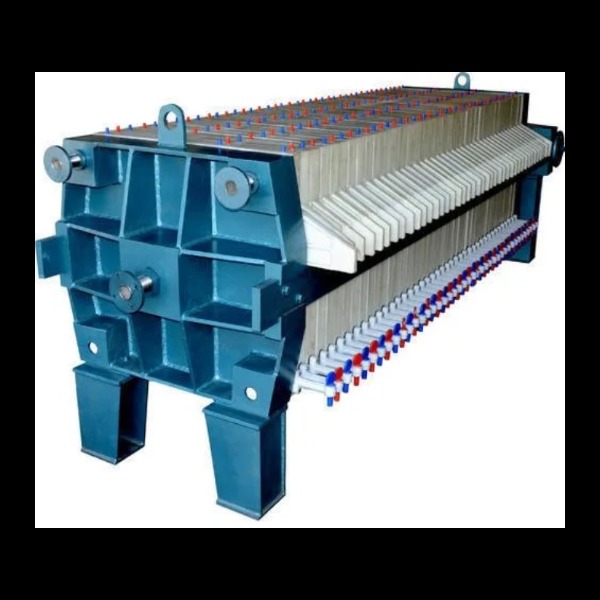

Membrane Filter Press
2026-06-10T09:24:01
The Yash Membrane Filter Press is designed for high-efficiency solid-liquid separation. It utilizes expandable membrane plates to apply additional squeeze pressure to the filter cake after the initial feed cycle. This secondary squeezing drastically reduces residual moisture content, optimizes washing efficiency, and shortens the overall filtration cycle. TECHNICAL SPECIFICATIONS PLATE AND FRAME DETAILS Plate Sizes: 470 mm x 470 mm to 2000 mm x 2000 mm Plate Material: High-density Polypropylene Membrane Material: EPDM, Nitrile, or Thermoplastic Elastomer Cake Thickness: 15 mm to 50 mm Structure: Mild Steel with anti-corrosive epoxy painting or Stainless Steel cladding PRESSURE AND TEMPERATURE RATINGS Standard Feed Pressure: 7 to 10 Bar Membrane Squeeze Pressure: 12 to 16 Bar High Pressure Options: Up to 30 Bar squeeze pressure available Operating Temperature: Up to 90 degrees Celsius HYDRAULIC AND CONTROL SYSTEM Closure System: Fully Automatic Hydraulic Hydraulic Operating Pressure: 200 to 250 Bar Control Panel: PLC-based fully automated panel with HMI touchscreen CAPACITY Filtration Area: 1 square meter to over 1000 square meters Cake Holding Capacity: 10 liters to 15, 000 liters per batch
