TECHNICAL SPECIFICATIONS OVERVIEW PLATE AND FRAME DETAILS SIZES RANGE FROM 470 MM X 470 MM TO 2000 MM X 2000 MM MANUFACTURED FROM HIGH DENSITY POLYPROPYLENE MEMBRANE MATERIALS INCLUDE EPDM, NITRILE, OR THERMOPLASTIC ELASTOMER ACCOMMODATES CAKE THICKNESSES FROM 15 MM TO 50 MM ROBUST MILD STEEL STRUCTURE WITH ANTI CORROSIVE EPOXY PAINTING OR STAINLESS STEEL CLADDING PRESSURE AND TEMPERATURE CAPABILITIES STANDARD FEED PRESSURE BETWEEN 7 TO 10 BAR MEMBRANE SQUEEZE PRESSURE RANGING FROM 12 TO 16 BAR HIGH PRESSURE OPTIONS AVAILABLE UP TO 30 BAR FOR EXTREME DEWATERING OPERATING TEMPERATURES SUPPORTED UP TO 90 DEGREES CELSIUS HYDRAULICS AND AUTOMATION FULLY AUTOMATIC HYDRAULIC CLOSURE SYSTEM HYDRAULIC OPERATING PRESSURE FROM 200 TO 250 BAR STATE OF THE ART PLC BASED AUTOMATED PANEL WITH INTUITIVE HMI TOUCHSCREEN CAPACITY RANGE FILTRATION AREA SCALABLE FROM 1 SQUARE METER TO OVER 1000 SQUARE METERS CAKE HOLDING CAPACITY FROM 10 LITERS TO 15000 LITERS PER BATCH INDUSTRIES WE SERVE CHEMICAL AND PETROCHEMICAL PROCESSING PHARMACEUTICALS AND BULK DRUGS EFFLUENT TREATMENT AND SLUDGE DEWATERING MINING AND MINERAL PROCESSING DYES, PIGMENTS, AND CERAMICS
This is your website preview.
Currently it only shows your basic business info. Start adding relevant business details such as description, images and products or services to gain your customers attention by using Boost 360 android app / iOS App / web portal.

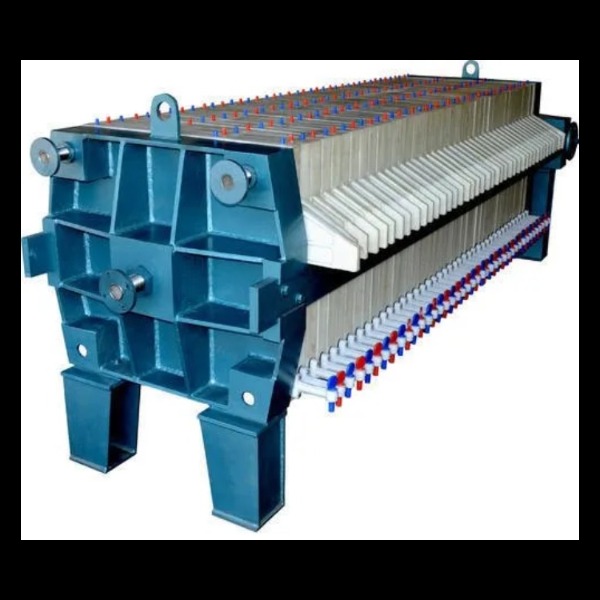

Membrane Filter Press Machine
2026-06-12T18:32:31
TECHNICAL SPECIFICATIONS OVERVIEW PLATE AND FRAME DETAILS SIZES RANGE FROM 470 MM X 470 MM TO 2000 MM X 2000 MM MANUFACTURED FROM HIGH DENSITY POLYPROPYLENE MEMBRANE MATERIALS INCLUDE EPDM, NITRILE, OR THERMOPLASTIC ELASTOMER ACCOMMODATES CAKE THICKNESSES FROM 15 MM TO 50 MM ROBUST MILD STEEL STRUCTURE WITH ANTI CORROSIVE EPOXY PAINTING OR STAINLESS STEEL CLADDING PRESSURE AND TEMPERATURE CAPABILITIES STANDARD FEED PRESSURE BETWEEN 7 TO 10 BAR MEMBRANE SQUEEZE PRESSURE RANGING FROM 12 TO 16 BAR HIGH PRESSURE OPTIONS AVAILABLE UP TO 30 BAR FOR EXTREME DEWATERING OPERATING TEMPERATURES SUPPORTED UP TO 90 DEGREES CELSIUS HYDRAULICS AND AUTOMATION FULLY AUTOMATIC HYDRAULIC CLOSURE SYSTEM HYDRAULIC OPERATING PRESSURE FROM 200 TO 250 BAR STATE OF THE ART PLC BASED AUTOMATED PANEL WITH INTUITIVE HMI TOUCHSCREEN CAPACITY RANGE FILTRATION AREA SCALABLE FROM 1 SQUARE METER TO OVER 1000 SQUARE METERS CAKE HOLDING CAPACITY FROM 10 LITERS TO 15000 LITERS PER BATCH INDUSTRIES WE SERVE CHEMICAL AND PETROCHEMICAL PROCESSING PHARMACEUTICALS AND BULK DRUGS EFFLUENT TREATMENT AND SLUDGE DEWATERING MINING AND MINERAL PROCESSING DYES, PIGMENTS, AND CERAMICS
2026-06-12T18:32:31
Submit Your Enquiry
